11.6 Inch 3-Color Supermarket Electronic Label E-paper Display 960*640 Resolution Low Power Consumption
Product Features
◊640×960 pixels display
◊High contrast + High reflectance + Pure reflective mode
◊Ultra wide viewing angle
◊Ultra low power consumption + Ultra Low current deep sleep mode
◊Bi-stable display
◊Commercial temperature range
◊Landscape, portrait modes
◊Hard-coat antiglare display surface
◊Serial peripheral interface available
◊I2C signal master interface
The YE116A10 E-PAPER display module offers excellent performance for commercial applications. It features an 11.6-inch screen with a display resolution of 640(H)×960(V) pixels (100 DPI) and an active area of 244.512(H)×163.008(V) mm, delivering clear and fine visuals .With an ultra-wide viewing angle and pure reflective mode, it ensures consistent display effects from any direction, while the hard-coat antiglare surface enhances visual comfort .
It adopts bi-stable display technology, paired with ultra-low power consumption and ultra-low current deep sleep mode (max 5μA in deep sleep), ensuring high energy efficiency .The module supports landscape and portrait modes, providing flexible display options .Its outline dimension is 254.31(H)×176.35(V)×0.9(D) mm (without masking film) and weight is 73.0±0.5 g, enabling easy integration .Equipped with an internal temperature sensor and designed for a commercial temperature range (0 to 30℃), it maintains stable performance in various environments .
| Type | E-Paper | Screen refreshing method | Full Refresh |
| Resolution | 640*960 | Place Of Origin | Guangdong,China |
| Brand Name | YZY | Outline Dimensions | 254.31(H)*176.35(V)*0.9(D) mm |
| Supplier Type | All (IPS) | Active Area | 244.512(H)*163.008(V) mm |
| Interface | SPI | Driver IC | SSD1677 |
| MOQ | 5PCS | Operating Temp. | 0~40° |
| | | Storage Temp. | -25~60° |
| Colors | Black/White/Red |
Product Picture
These E - PAPER display modules are stellar at presenting product and promotional info. Just like in the image showcasing a bag, they vividly display details such as the regular price of $635.00, member price of $628.00, and a “Save 15% more” discount, making the product and offers stand out sharply. Their clear display and versatility make them ideal for retail to grab customers' attention. Beyond retail, they have extensive uses: in retail stores, they’re great for promoting fashion, cosmetics, or household items, letting customers easily see product features, prices, and discounts; in logistics and warehousing, they act as smart goods labels for real - time updates of product names, batch numbers, and storage spots to optimize inventory management; in smart offices, they serve as electronic name cards or meeting schedule displays with low power, showing employee info or meeting agendas; in exhibition halls, they work as digital exhibit intro boards to provide detailed info eco - friendly. With top - notch readability, low energy use, and flexible display, E - PAPER modules meet diverse industry needs.
Core Advantages
The YE116A10 e - paper display module adopts pure reflective display technology and doesn't need a backlight module. It relies on ambient light for imaging, and its visual effect is close to that of traditional paper, ensuring no eye fatigue even after long - term viewing. The screen is equipped with a hard - coat anti - glare design, which can reduce glare under direct strong light, so that text and images remain clear even in outdoor sunny conditions. Combined with the ultra - wide viewing angle feature, there is no color or brightness deviation when viewed from the front or side, providing a consistent experience for multiple viewers. It is suitable for scenarios such as outdoor advertising, retail shelves, conference dashboards, and e - readers.
Based on bistable display technology, power is only consumed when the screen is refreshed, and there is almost zero power consumption in static display mode. The current in deep sleep mode is ≤3μA, and the maximum full - screen refresh power consumption is 80mAs. When paired with a lithium battery, it can achieve a battery life ranging from several months to several years depending on the refresh frequency. For example, smart price tags that are refreshed once a day can have a battery life of over 12 months, eliminating the need for frequent power supply and maintenance. It is suitable for scenarios such as outdoor signs, logistics labels, and monitoring screens in remote areas.
The hard - coat screen has anti - glare, scratch - resistant and fingerprint - resistant properties, preventing damage from slight collisions and friction in daily use. It operates in a temperature range of 0 - 40℃, and has a storage and transportation temperature range of - 25 - 60℃, ensuring no black screen at low temperatures and no malfunction at high temperatures. It is suitable for environments such as outdoors, industrial workshops, and hospitals. Without liquid crystals or organic light - emitting materials, there is no risk of "screen burn - in", and no afterimage occurs in static display. It has passed 240 - hour high and low temperature tests and 50 temperature cycle tests, with a designed service life of 3 years, meeting the long - term use needs of scenarios such as industrial panels, hospital bedside information cards, and elevator signs.
It supports SPI and I2C interfaces, enabling connection to microcontrollers, PLCs, embedded systems and other devices without complex driver development, reducing integration difficulty. It supports horizontal and vertical screen switching to adapt to different installation scenarios; it also supports partial and full refresh modes. Partial refresh for smart price tags reduces power consumption, while full refresh for office dashboards ensures complete content presentation, balancing efficiency and power consumption. It is suitable for scenarios such as smart wearables, retail price tags, industrial monitoring, and office dashboards.

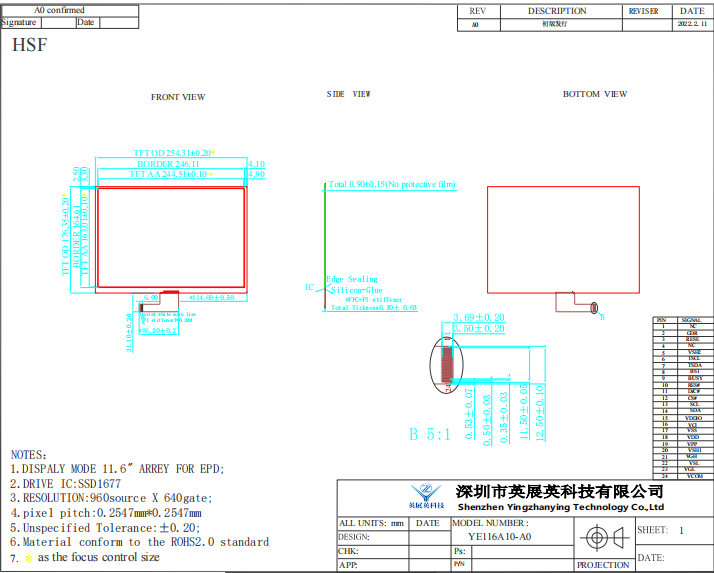

Technical Drawing
PIN Definition | PIN | Symbol | Description |
|
| 1 | NC | No connection and do not connect with other NC pins | Keep Open |
| 2 | GDR | N-Channel MOSFET Gate Drive Control |
|
| 3 | RESE | Current Sense Input for the Control Loop |
|
| 4 | NC | No connection and do not connect with other NC pins | Keep Open |
| 5 | VSH2 | Positive Source driving voltage |
|
| 6 | TSCL | I2C Interface to digital temperature sensor Clock pin | Note 6-6 |
| 7 | TSDA | I2C Interface to digital temperature sensor Date pin | Note 6-6 |
| 8 | BS1 | Bus selection pin | Note 6-5 |
| 9 | BUSY | Busy state output pin | Note 6-4 |
| 10 | RES# | Reset | Note 6-3 |
| 11 | D/C# | Data/Command control pin | Note 6-2 |
| 12 | CS# | Chip Select input pin | Note 6-1 |
| 13 | SCL | serial clock pin (SPI) |
|
| 14 | SDA | serial data pin (SPI) |
|
| 15 | VDDIO | Power for interface logic pins |
|
| 16 | VCI | Power Supply pin for the chip |
|
| 17 | VSS | Ground |
|
| 18 | VDD | Core logic power pin |
|
| 19 | VPP | Power Supply for OTP Programming |
|
| 20 | VSH1 | Positive Source driving voltage |
|
| 21 | VGH | Power Supply pin for Positive Gate driving voltage and VSH |
|
| 22 | VSL | Negative Source driving voltage |
|
| 23 | VGL | Power Supply pin for Negative Gate driving voltage, VCOM and VSL |
|
| 24 | VCOM | VCOM driving voltage |
|
The YE116A10 offers multiple customization options to meet diverse application needs:
FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.
Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.
Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.
Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
